The compact access control and vehicle parking solution

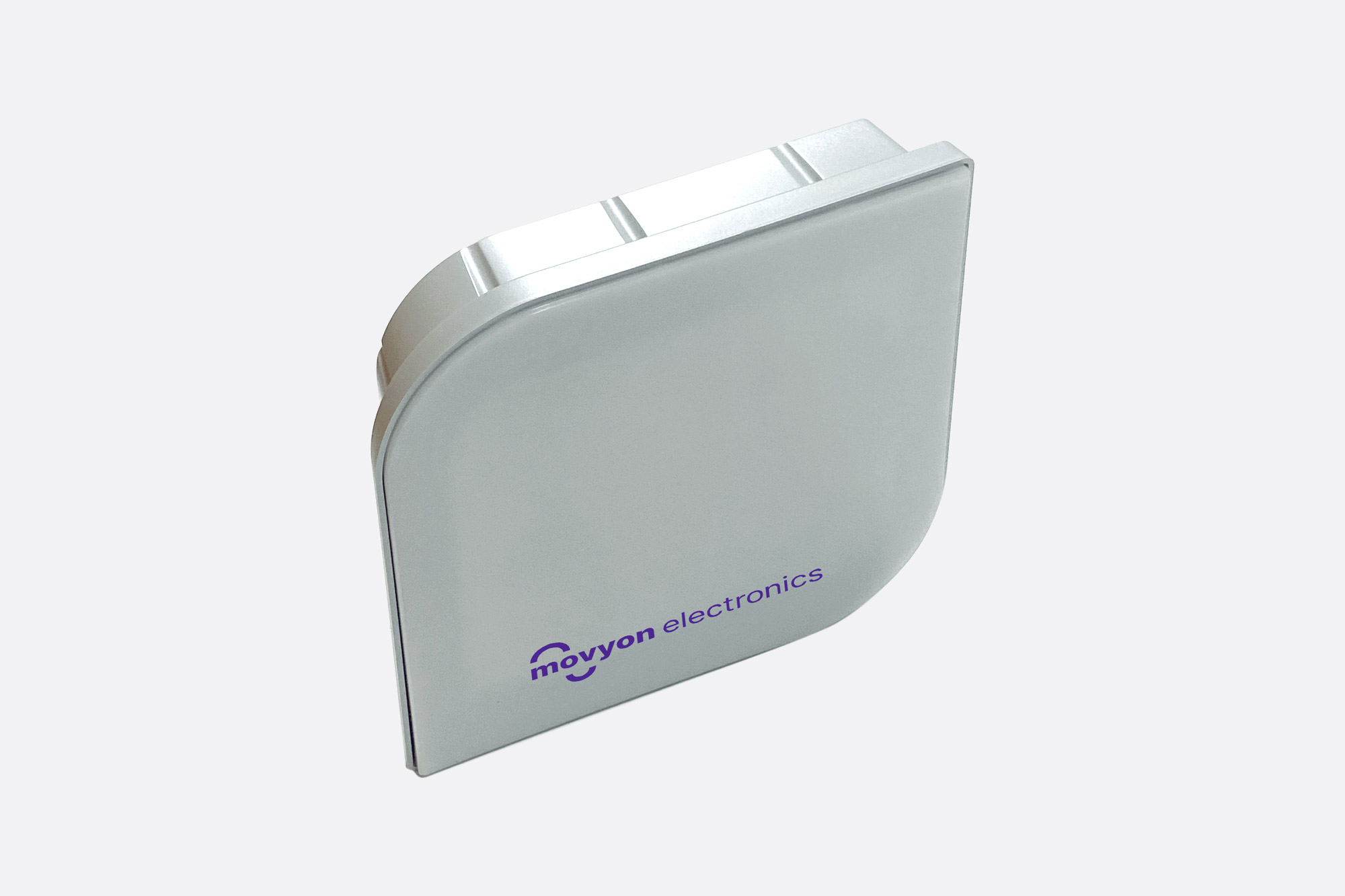

Smart Antenna Italy 2.0 is a new generation radio frequency antenna, designed to communicate with on-board units (OBU) in accordance with the UNI 10607 and ETSI ES 200 674 standards. Its compact and lightweight architecture makes it particularly suitable for access management and parking payment scenarios in urban, industrial and private areas.
Installed at the sides of lanes rather than in a central overhead position, this single device integrates functions normally entrusted to multiple devices: OBU reading, autonomous transaction management, barrier control, external device management (coils, photocells), network connectivity and GPS locating.

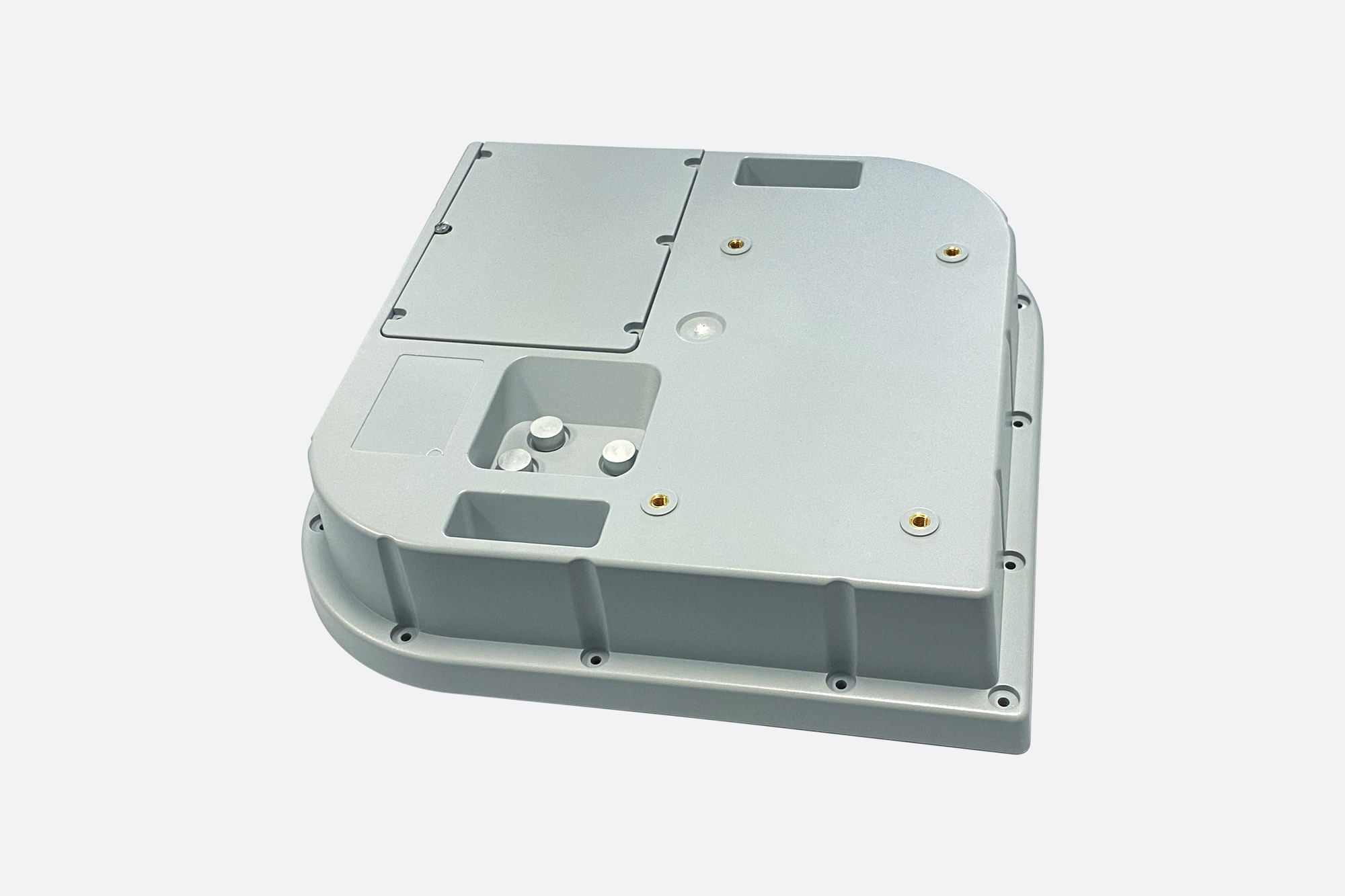

Its simplified structure and the rear door for wiring make the antenna very easy to install and configure, even by non-specialist personnel.
TECHNICAL SPECIFICATIONS
- OBU communication: UNI 10607 and ETSI ES 200 674 standards
- Carrier frequency: 5.8 GHz
- Bit rate: up to 921 kbps
- Modulation: OOK / FSK
- Power supply: 24 VDC
- Consumption: < 20 W
- Weight: ~2 kg
- Dimensions: 338 x 338 x 75 mm
- IP protection: IP65
- Operating temperature: -30°C to +70°C
- Connectivity: Ethernet, Bluetooth 5.0 Dual Mode, LTE, GPS
- Processor: Dual Core Cortex A9 + FPGA
- Memory: 512 MB RAM, 8 GB eMMC, 512 kbit EEPROM
- Digital I/O: pins for external devices, 2 RS232
- Operating system: Linux
Benefits
Autonomous management of DSRC transactions
with support for lists of authorized users

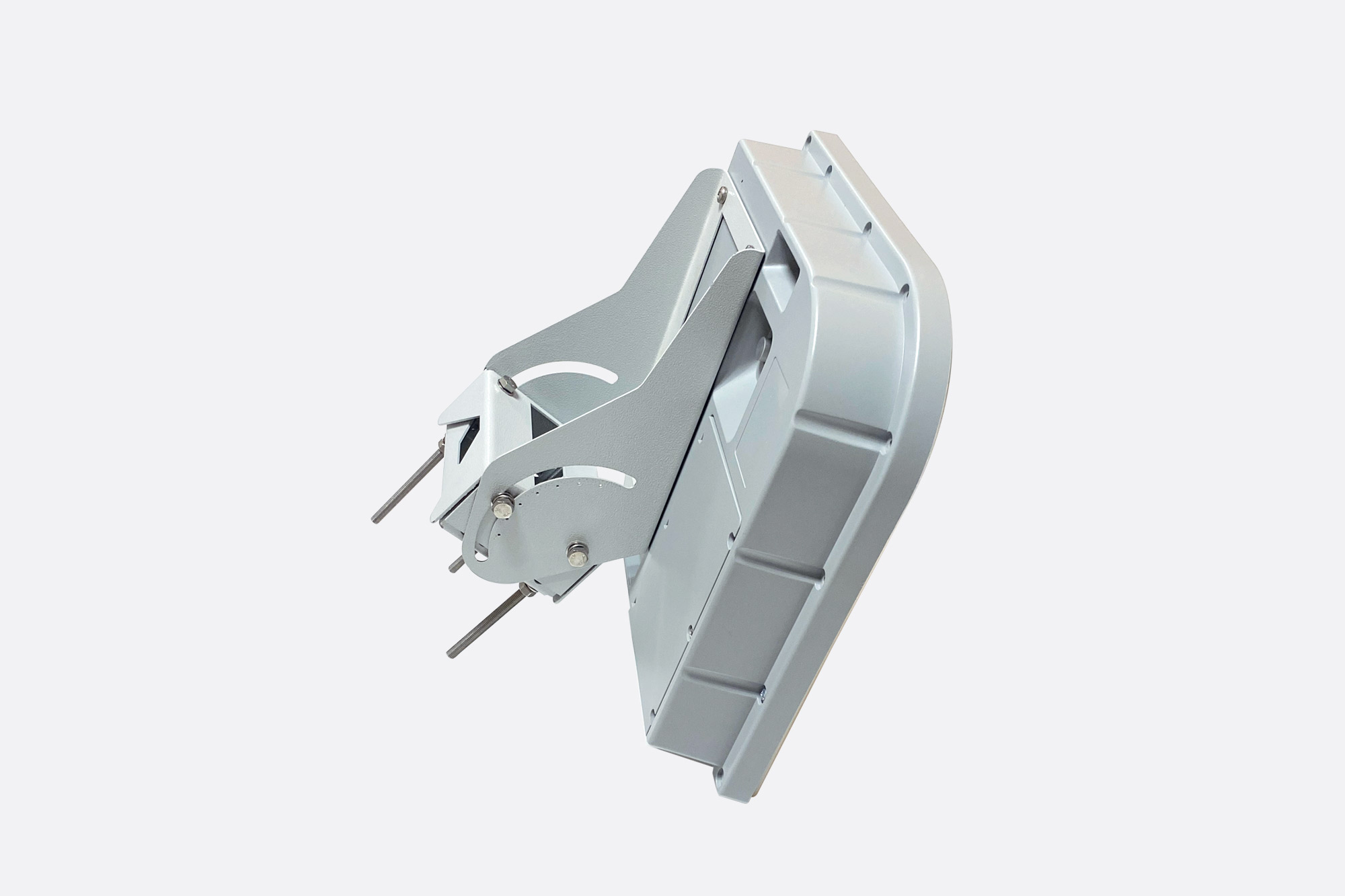

Simplified side installation
without the need for overhead structures
Direct control of barriers and external devices
without intermediate units
Advanced connectivity
(Ethernet, LTE, Bluetooth) and built-in GPS locating
Reliability in any situation
thanks to compact design, IP65 and operation at extreme temperatures
Applications
Smart Antenna Italy 2.0 is designed to offer a versatile and efficient solution in off-highway situations, where access control and automatic parking management are fundamental operational needs.

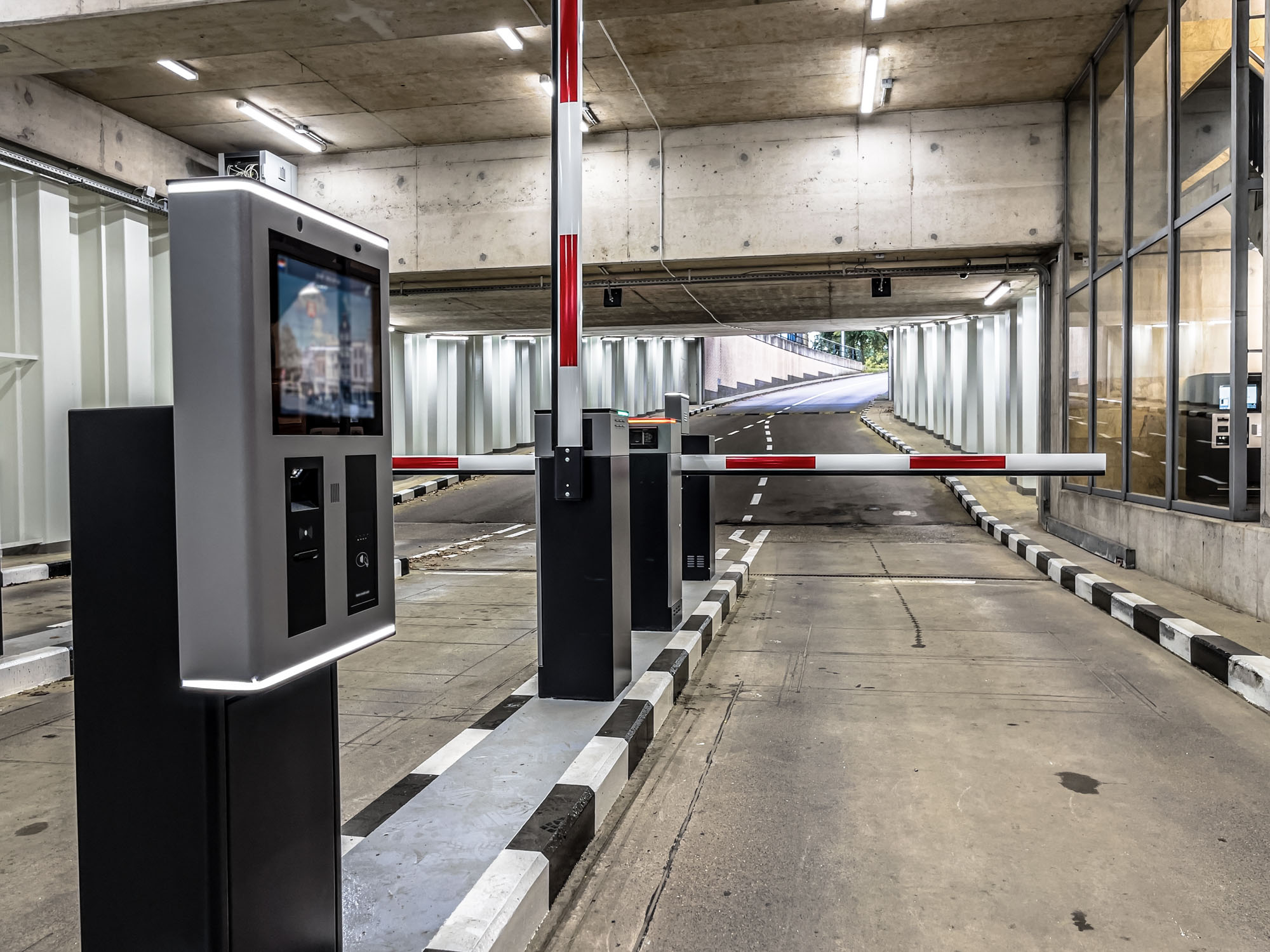

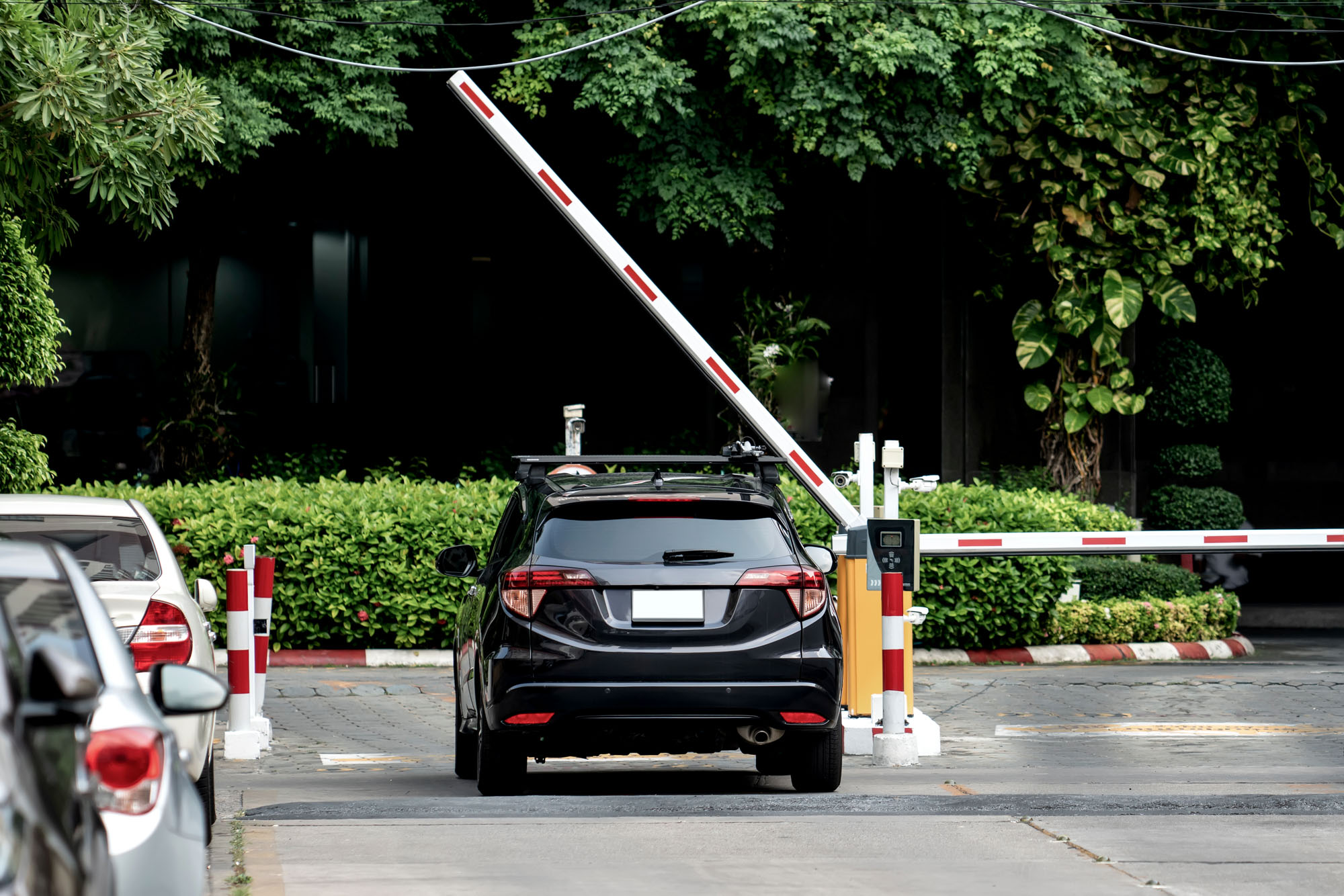

It is ideal for application in public and private parking lots, industrial areas, condominiums, logistics centers, company gates, and any situation in which access needs to be authorized via on-board equipment. The device can manage lists of authorized users, directly control barrier opening, and easily integrate with external sensors such as coils or photocells to ensure smooth, safe and automated vehicle flow.
